Flushing, NY Residential heating and cooling
Flushing AC & Furnace works on the equipment in and around your house: the outdoor condenser, the evaporator coil, the blower, the furnace, the thermostat and the ductwork. When something stops working, you get a technician who finds the part that failed and explains it in plain language.
Section 01 Component explorer
A split system is a small set of parts doing simple things in sequence. Pick a part below to see what it actually does, how it connects to the rest of the system, and the symptoms that send a technician straight to it.

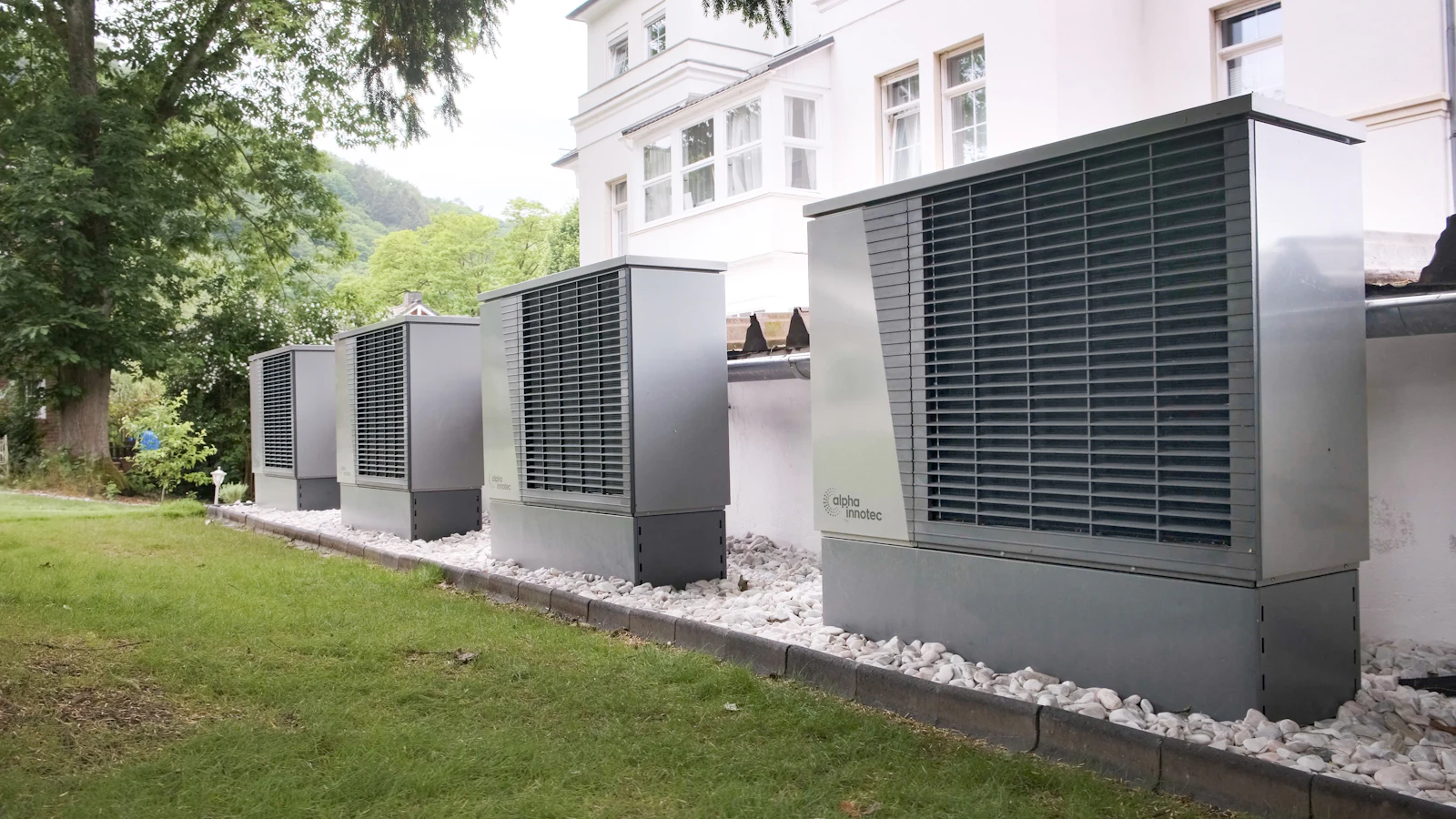

Part 01 heat rejection
The condenser is the metal cabinet sitting on a pad beside the house. Inside it are the compressor, the outdoor coil and a fan, and the whole job of the cabinet is to push heat out of the refrigerant and into the outdoor air.
Refrigerant circulates between this cabinet and the indoor coil through the line set, so the same charge moves back and forth instead of being used up. Most residential equipment carries R-410A, while newer systems are arriving with R-454B. The fan pulls outdoor air across the coil fins, which is why clear space around the unit and a clean coil matter as much as the electrical parts inside it.
Part 02 heat transfer
There are two coils. The evaporator coil sits above the furnace or inside the air handler and pulls heat and moisture out of the house air. The condenser coil lives in the outdoor cabinet and gives that heat up outside.
Both are rows of tubing wrapped in closely spaced fins, because surface area is what moves heat. As the indoor coil gets cold, water in the air condenses on it and drains away through the condensate pan. When airflow drops, the coil gets colder than it should and starts to freeze instead of draining.
Part 03 air movement
The blower is a motor and a squirrel-cage wheel inside the air handler or furnace. It pulls room air through the return and filter, pushes that air across the evaporator coil, and drives it out into the supply ducts.
Everything downstream depends on it, and the result is measured in CFM against the static pressure the ducts create. Too little airflow and the coil freezes in cooling or the furnace trips its limit in heating. Too much and the system gets loud, draftsy and out of balance from room to room.
Part 04 heat generation
A gas furnace burns fuel in a sealed burner assembly, transfers that heat through the heat exchanger, and lets the blower send it down the ducts. An inducer motor pulls combustion air through the heat exchanger and pushes the products of combustion out the vent.
A call for heat runs in sequence: the inducer starts, the ignitor glows or a spark lights the burners, the flame sensor proves the flame, and the blower comes on once the heat exchanger has warmed up. Electric furnaces use heating elements instead of burners, and in a heat pump home the furnace may be backup heat or may not be present at all.
Part 05 the call for heating or cooling
The thermostat is the switch that tells the system what to do. It reads the room temperature, compares it with the setpoint, and sends a low-voltage call to the equipment for heat, cool or fan. Most homes are comfortable somewhere in the 68–72°F range, and where the thermostat sits matters as much as the schedule it runs.
Newer thermostats add staging and scheduling: a two-stage system holds most of the load on the low stage and only calls up when the house cannot keep up. A thermostat on a sunny wall or directly above a supply register reads the wrong room and keeps the system chasing a number that does not describe the house.
Part 06 delivery
Ductwork is the delivery system. Return air paths bring room air back to the equipment, and supply ducts carry conditioned air out to the registers. Sheet metal and flex duct run through attics, crawlspaces and wall cavities, and every joint, turn and grille adds resistance the blower has to overcome.
Duct sizing follows the design load for the house, and the equipment has to move the right volume of air against the pressure those ducts create. A leak into an attic, a crushed flex run behind a wall, or a damper someone closed all show up the same way in the living space: rooms that will not hold temperature.
Section 02 AC services
Cooling complaints usually arrive the same way: the system runs, but the air at the registers is not cold enough, or the house never reaches setpoint before the afternoon heat sets in.
Systematic checks across the condenser, evaporator coil, blower and refrigerant charge. Failed capacitors and contactors are common electrical finds, and charge problems are confirmed with gauge readings and superheat or subcooling rather than guesswork.
R-410A is the charge in most equipment installed over the last decade, while R-454B and other lower-GWP blends are showing up on newer systems. Leaks are located and repaired before refrigerant is added, because a charge only holds if the circuit is sealed.
Outdoor coil fins pack up with dust, pollen and cottonwood fluff, and a loaded indoor coil shows up as humidity problems and ice. Cleaning both restores airflow across the heat transfer surface and gives the equipment its headroom back.
The evaporator makes water as it cools. A blocked drain fills the condensate pan and trips the float switch to prevent overflow, so clearing the pan, the drain line and the switch is routine cooling-season work.
The same cabinet heats and cools, so a cooling-mode diagnosis also involves the reversing valve, the defrost controls and how the charge behaves across both directions of flow.
Wall-mounted indoor units carry their own coil, blower and line set. Service covers the indoor coil and filter, the condensate drain or pump, the wall controls, and the outdoor unit that feeds them.
Section 03 heating
Most no-heat calls come down to one of a handful of parts in the ignition sequence or the heat itself. Finding which one is the whole job, and it starts with what the thermostat did and what the furnace did in response.
The call from the thermostat, the thermostat's own reporting, and the equipment's response are checked in order. The point is to separate a control problem from a component problem before any part is replaced.
Hot-surface ignitors, flame sensors, capacitors and inducer motors wear with use. A sensor that proves the flame only intermittently will shut the burners off a second or two after they light, which looks to a homeowner like a furnace that will not stay on.
The heat exchanger and the vent path are inspected for cracking, corrosion and proper draft. Combustion findings and any heat exchanger concern are handled as a safety matter, not a part swap.
In cold weather a heat pump runs longer and periodically reverses to defrost the outdoor coil. Short cycling, extended run times or an auxiliary heat call that never drops out are all worth checking against charge, airflow and controls.
Limit switches, pressure switches and rollout devices exist to stop equipment before damage occurs. A limit that trips repeatedly is reporting an airflow or heat-exchanger condition that needs correcting at the source.
Section 04 airflow
Comfort is a delivery problem as often as an equipment problem. Air has to leave the equipment, travel the ducts, reach the registers and come back through the return, and every one of those steps can be restricted.
Static pressure is the resistance the blower works against, and CFM is the air it actually moves. Filters that load up, returns that are undersized, flex duct crushed in an attic, or registers with the damper closed all raise that resistance. The result is the same: uneven rooms, long run times, and equipment that sounds busier than it should.
Weak airflow is usually found at the return, the filter or the ducts, not at the condenser outside.
Section 05 controls
Controls sit between what you want and what the equipment can do. They run quietly in the background, which is exactly why a failure here is often mistaken for a mechanical one.
Replacing a thermostat means matching terminals and stages, not just the faceplate. Wiring, the equipment's stage configuration and the presence of a common wire all decide which unit will work correctly on that wall.
The control circuit carries the call for heat, cool and fan between the thermostat and the equipment. Damaged conductors, loose splices and outdated wiring produce intermittent behavior that looks random until the circuit is traced.
Two-stage equipment holds most of the load on the low stage and calls up only when needed. Setpoints, schedules and placement together decide whether the system runs in short bursts or long, steady cycles.
Float switches on the condensate pan, limit switches, pressure switches and low-voltage cutoffs shut equipment down before damage happens. A recurring trip is a report of a drainage or airflow problem that needs fixing at the source.
Section 06 maintenance
Most equipment failures show up as a slow drift rather than a sudden break. A scheduled visit before cooling season and another before heating season keeps the easy-to-reach items from turning into the expensive ones.
Vegetation pulled back, cabinet clear, fins cleaned so outdoor air can move across the coil, and the fan checked for free operation.
Filter type and change interval confirmed, return grilles cleaned, and the return path checked for the restriction that shows up as weak airflow.
Indoor coil inspected, condensate pan and drain line cleared, and the float switch tested so it trips before water leaves the pan.
Capacitors, contactors and wiring inspected for heat damage, and amp draw checked against what the motor and compressor should draw.
Gauge readings, superheat and subcooling, and the temperature split across the coil tell you whether the charge and the airflow are working together.
Blower wheel cleaned, static pressure measured, and registers observed across a full cycle so weak rooms are found before winter or summer starts.
Ignitor, flame sensor and burners inspected, heat exchanger and venting reviewed, and the furnace run through a full call for heat.
Setpoints, schedules and placement confirmed, display and staging checked, and the control wiring verified at the equipment end.
Section 07 replacement considerations
Some failures are a single part in an otherwise suitable system, and some are the system telling you it no longer fits the house. The comparison is always between repeated service on what you have and the cost of new equipment plus any distribution work it needs.
Where a repeated repair lands on the same component, or where the equipment no longer matches the load of the home, a replacement conversation becomes the practical one. Either way the numbers should be based on a measured system, not an assumption.
